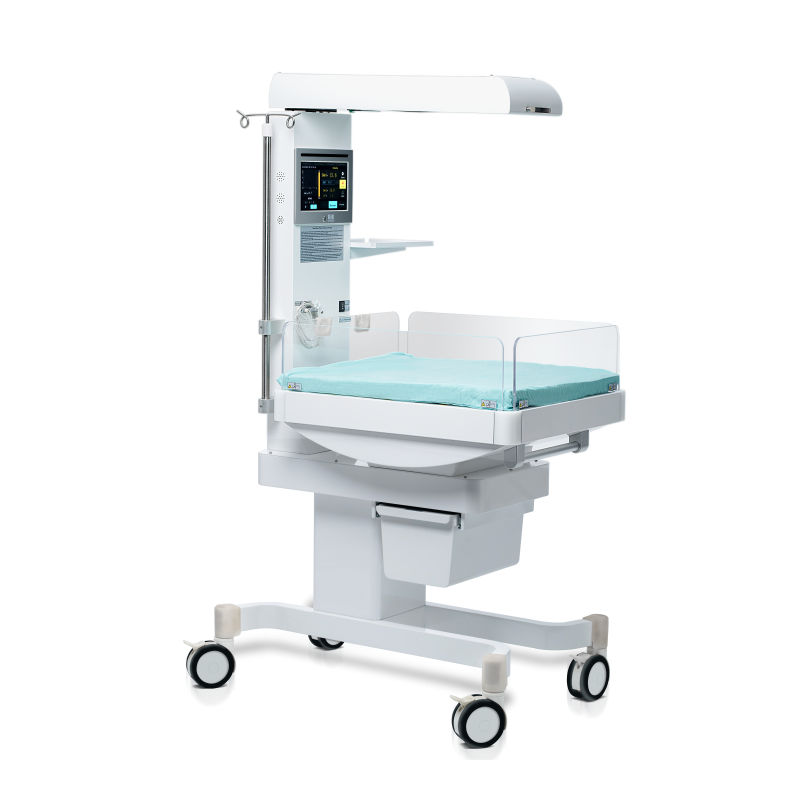

Model:N6 Pluse
◎Microprocessor based servo controlled temperature system
◎Three modes: pre-warm, manual and automatic
◎Set temperature ,skin temperature and air temperature display separately
◎LCD touch screen display and have data storage curve display function
◎ Far-infrared ceramic heating tube for radiation source
◎Self - testing function, various failure alarms by audible and visual
◎APGAR timer to record therapy time
◎Heater head can be adjusted ± 90° horizontally
◎Inclination of infant bed is adjustable by electric
◎LED observe light is adjustable
◎Convenient X-ray cassette under infant bed
◎Have two skin temperature sensor
◎Transparent protector can be folded down, with two infusion seals
◎Have one drawer,one tray and IV pole
◎One big drawer under bed
Specification:
|
Power Supply |
AC220v/50~60HZ;AC110V/60HZ |
|
Power input |
≦850VA |
|
Temperature control mode |
Pre-warm, manual and automatic |
|
Skin temperature control rang |
32.0℃～ 38.0℃ |
|
Over temp. alarm |
38.0℃ |
|
High mode temp.range |
37.1℃~38.0℃ |
|
High mode temp.alarm |
39.0℃ |
|
Temp.deviation alarm |
±1.0℃ |
|
Temperature control accuracy |
≦0.5℃ |
|
Skin sensor accuracy |
≦0.3℃ |
|
Temperature display accuracy |
≤0.1℃ |
|
Infant Bed tilt angle |
±13° |
|
Uniformity of mattress temp. |
≦2.0℃ |
|
Heating rate |
≦45min |
|
Mattress size |
720*580*40mm
|
|
Distance from heater to mattress |
820mm |
|
APGAR Timing |
1min ,5min,10min.... |
|
Operating conditions |
Environment temperature 18℃~30℃ |
|
Environment relative humidity 30%~75%RH |
|
|
Atmospheric Pressure 700~1060hPa |
|
|
Environment air velocity of flow ＜0.3m/s |
Optional functions:
Whole machine height adjustable
LED phototherapy unit H90
Oxygen system
Low pressure aspirator
|
Transport and Storage |
|
Environment Temperature:-10℃~ +55℃ |
|
Environment Relative Humidity: ≤95%RH |
|
Atmospheric Pressure: 500～1060hPa |
